Samarat without LED
The high-quality, silent, ultra-flat ceiling fan (only 15 cm under the blades)
Performant & accessible financièrement
Although the SAMARAT ceiling fan without LEDs meets RE2020 requirements in terms of summer comfort, it is mainly prescribed for educational establishments or public buildings with existing lighting. It is also very easy to assemble.
Why choose a Samarat ceiling fan?
- It’s a good-looking, low-noise DC brushless motor.
- It is ultra-flat (15 cm under the blades) in order to comply with the AFNOR standard on minimum height under the blades (2.30 m).
- It has a very high air flow rate of 11,882 m3/h for a relatively low power consumption (43 watts) and therefore an excellent energy efficiency of 280 to 962 W/m3/h, which means that the DH in the RE2020 engine can be greatly reduced.
- It has a lifetime (parts) warranty! (Not just the engine).
- It offers a number of options, including fixed wall-mounted remote controls (RF) operating on batteries or 220 volts, as well as rods (ball joints) available in different sizes (20/30, 30/40, 40/60, 60/90, 90/110 cm) (plenum fixing rods tutorial).
- It has an individual PEP sheet (product environmental profile): ≤ 26.9 kgCO2eq
Direction of rotation
It is entirely possible to reverse the direction of rotation (DC motor) to take advantage of the ceiling fan’s benefits, both in cooling mode for summer comfort, and in diffusing the heat accumulated on the ceiling for winter comfort.

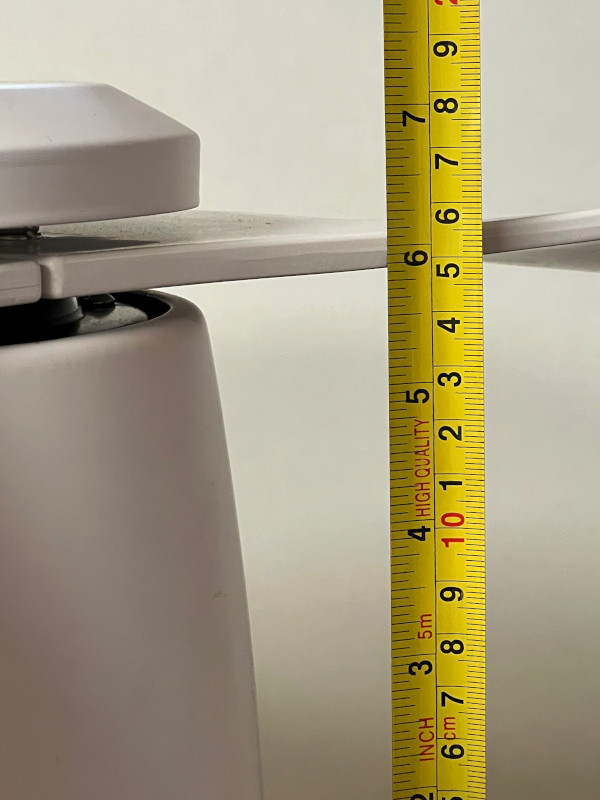

Ultra Flat: Height under blades 15 cm
More information on AFNOR standard & minimum height under blades at 2.30 m.
Technical characteristics of the Samarat ceiling fan without LED
Dimensions: Height 15 cm under blades and 17.5 cm under cover
Blade materials :
– ABS (Acrylonitrile Butadiene Styrene) in diameters 90 / 107 / 132 cm
– Light or dark wood for diameter 132 cm
Weight : 5 kg
Colour: matt white
Volume of air mixed: 11882 m3/h
Warranty (parts): lifetime
Power consumption: 5 to 43 Watts (at maximum speed)
Remote control: RF 6 speeds
Volume: 27 to 35 dB
Energy efficiency: 280 to 962 W/m3/h
Motor: BLDC (brushless DC motor)
SAMARAT WITHOUT LED
| Fan speed | RPM | Air flow rate (m3/h) | Decibels (dB) | Power consumption (W) |
|---|---|---|---|---|
| 1 | 102 | 6157 | 27 | 6,4 |
| 2 | 121 | 7304 | 30 | 10,7 |
| 3 | 141 | 8512 | 30 | 15,5 |
| 4 | 159 | 9598 | 32 | 24,1 |
| 5 | 180 | 10866 | 33 | 36,2 |
| 6 | 197 | 11882 | 35 | 42,4 |
With a thickness of only 16 cm BELOW THE BLADES, the SAMARAT fan is the only fan with blades that complies with the NF EN CEI 60335-2-80 standard for ceilings 2.50 m high. The standard recommends a minimum height between floor and blades of 2.30 m for the safety of occupants.
Rods and remote controls for the LED-free Samarat
Rod lengths available :
- 30 to 40 cm extendable and reclining.
- 20 to 30 cm extendable and non-reclining.
- 30 to 40 cm extendable and non-reclining.
- 40 to 60 cm extendable and non-reclining.
- 60 to 90 cm extendable and non-reclining.
- 90 to 110 cm extendable and non-reclining.
RF remote controls
We also offer 2 types of wall-mounted remote control that can control several fans in the same room:
- Battery-operated.
- Wired (220 volts).
Standard remote control
Optional wall-mounted remote control (batteries or 220 volts)
Above 50m2 and/or 6 fans, we recommend a second remote control.
Valued in the RE2020
Ceiling fans are a simple and economical way of reducing discomfort in summer. They are highly valued in the RE2020 (summer comfort).
In zones H3 and H2D, fans are virtually indispensable if the building is to be RE2020 certified.
Decibel scale according to BruitParif
